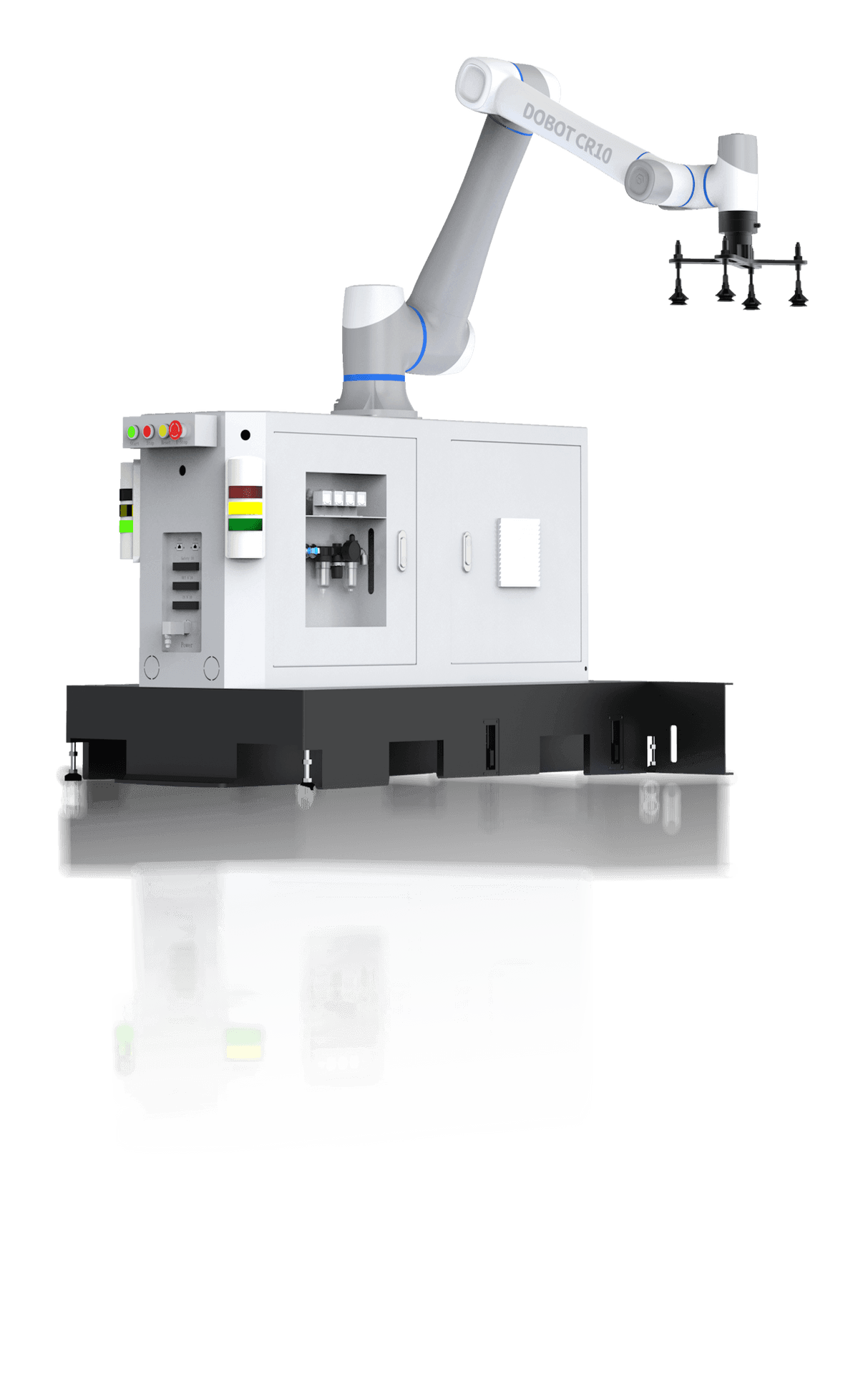

Cobot-Palletizer
Ultrand is able to offer the most competitive price level compact palletizer ULX-CR-201. Ideal for small/medium production lines using Dobot collaborative robots.
Plug & play
The ULX-CR-201 comes with all the necessary components and is characterized as a "plug&play" solution. Installation can be completed in 2 to 4 hours.
FAST setup
Without complexity, in only 4 steps and less than 10 minutes the training of a new product is completed.
COMPATIBLE WITH SAFETY DEVICES
For additional safety features, the I/O ports can be connected to emergency stops, doors and safety curtains.
System Characteristics
Specifications
- IP 54.
- Up to 8 products/min.
- Max pallet height 300-1800mm.
- UPS for safe shutdown.
- Max speed 80mm/s.
- Pallet existence sensors.
- Pallet existance control sensors
- Box arrival control sensor
- Capability of remote assistance for technical
support. - Operating temperature 0°C - 50°C.
Details
- 2 types of Gripper depending on the product (Foam Gripper/Suction Cups)
- System total weight: 400kg.
- Fast product picking.
- Maximum pallet dimensions: 1219Χ1219mm
Power
- AC Voltage: 230 Volts.
- Amplitude : 32 Amperes Max.
- Number of phases : 1-phase, 50/60 Hz.
Minimal spatial footprint
ULX-CR-201 requires just an area of 760Χ1300mm. Including the space that the 2 pallets cover, there is a maximum space demand that is less than 3 square meters.
